Détails du produit
Synonyms
LAG3, CD223, FDC
Source

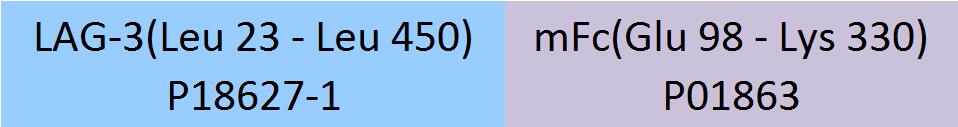

Human LAG-3, Mouse IgG2a Fc Tag (LA3-H52Aa) is expressed from human 293 cells (HEK293). It contains AA Leu 23 - Leu 450 (Accession # P18627-1).
Predicted N-terminus: Leu 23
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version
This protein carries a mouse IgG2a Fc tag at the C-terminus.
The protein has a calculated MW of 73.25 kDa. The protein migrates as 90-100 kDa when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition (SDS-PAGE) due to glycosylation.
Endotoxin
Less than 0.01 EU per μg by the LAL method / rFC method.
Purity
>95% as determined by SDS-PAGE.
>95% as determined by SEC-MALS.
Formulation
Lyophilized from 0.22 μm filtered solution in Tris with Glycine, Arginine and NaCl, pH7.5 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Shipping and Storage
This product is shipped at ambient temperature.
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
Les clients ont également consulté
Affichage des données
SDS-PAGE
Human LAG-3, Mouse IgG2a Fc Tag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95% (With Star Ribbon Pre-stained Protein Marker).
SEC-MALS

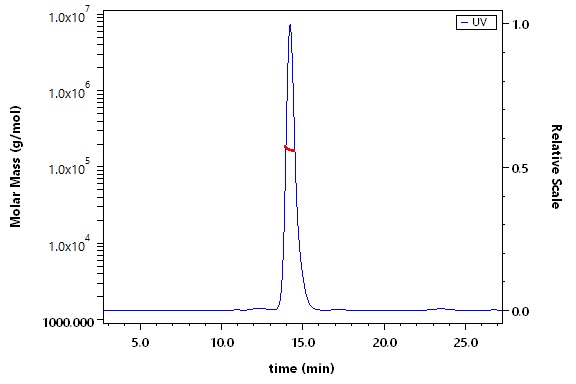

The purity of Human LAG-3, Mouse IgG2a Fc Tag (Cat. No. LA3-H52Aa) is more than 95% and the molecular weight of this protein is around 160-185 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA
Immobilized Human LAG-3, Mouse IgG2a Fc Tag (Cat. No. LA3-H52Aa) at 2 μg/mL (100 μL/well) can bind Anti-Human LAG3 MAb, Human IgG1 with a linear range of 1-10 ng/mL (QC tested).
Protocol
Immobilized Human LAG-3, Mouse IgG2a Fc Tag (Cat. No. LA3-H52Aa) at 10 μg/mL (100 μL/well) can bind Cynomolgus / Rhesus macaque FGL1, Fc Tag (Cat. No. FG1-C5269) with a linear range of 0.01-0.156 μg/mL (Routinely tested).
Protocol
Bioactivity-BLI

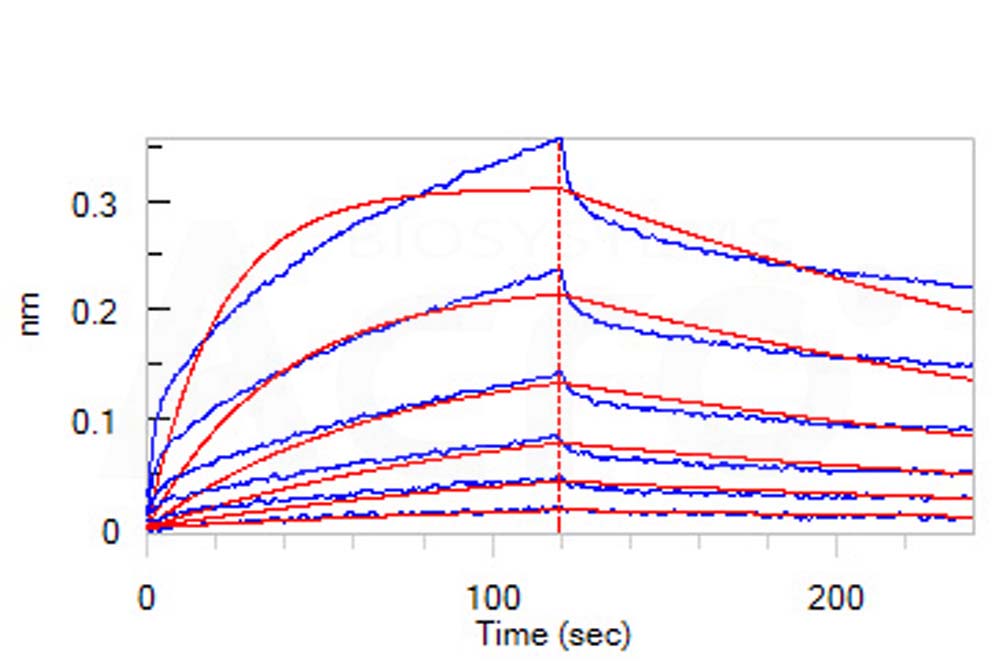

Loaded Human LAG-3, Mouse IgG2a Fc Tag (Cat. No. LA3-H52Aa) on AMC Biosensor, can bind Human FGL1, Fc Tag (Cat. No.FG1-H5258) with an affinity constant of 43.4 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
Bioactivity-FACS
Flow Cytometry assay shows that Human LAG3, Mouse IgG2a Fc Tag (Cat. No. LA3-H52Aa) can bind to daudi cell surface. The concentration of LAG3 used is 0.3 μg/mL (Routinely tested).
Protocol

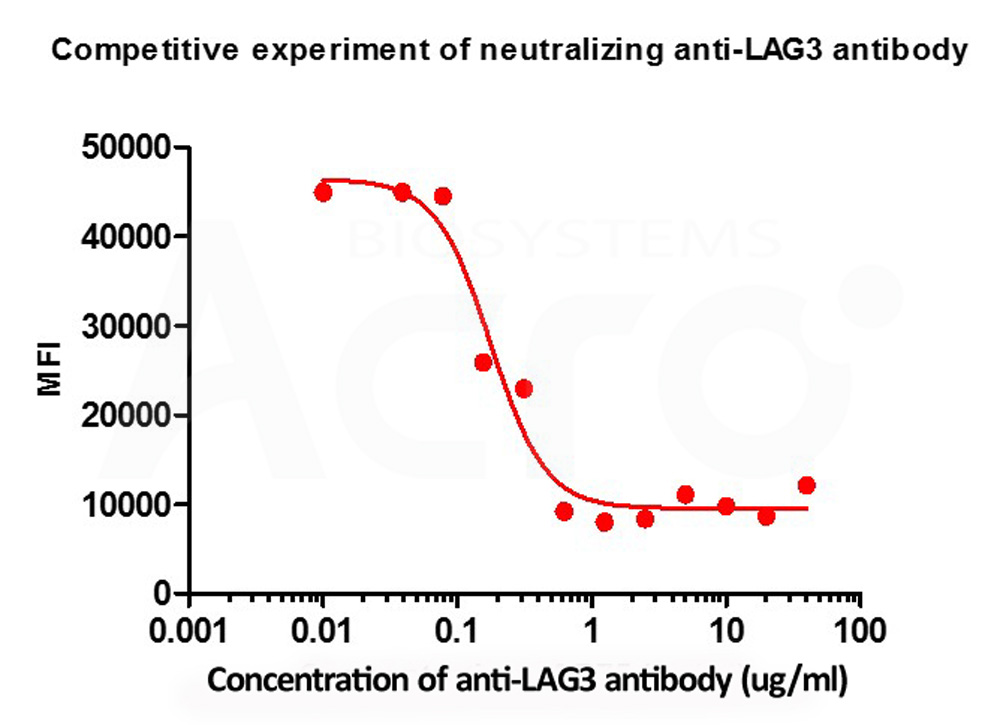

FACS analysis shows that the binding Human LAG3, Mouse IgG2a Fc Tag (Cat. No. LA3-H52Aa) to daudi cells was inhibited by increasing concentration of neutralizing Anti-LAG3 antibody. The concentration of LAG3 used is 1 μg/mL. The IC50 is 0.165 μg/mL (Routinely tested).
Protocol
Avis des utilisateurs Publier un commentaire
1***92019-10-11
J'aimeWe purchased ACRO's Human LAG3-mFc protein, and we tested its affinity with the antibody on Biacore T200. The results showed that the affinity was within the normal range, and the protein bioactivity is very good!
